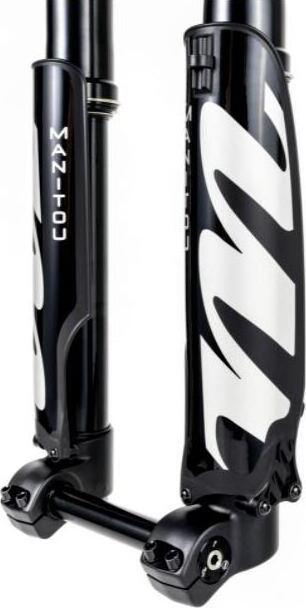

In 2001 the first Dorado charged downhill. 20 years later the latest Dorado has arrived. It features 37mm legs for improved chassis stiffness and precision. The Inverted design has tracks through off cambers and rock gardens much better that a conventional fork. Inverted forks have significantly longer bushing overlap, lower sprung weight, increased for / aft stiffness and constantly lubricated seals. The new TPC+ damper is sealed in the Pro with a spring backed IFP eliminating cavitation. All TPC+ dampers have improved oil flow paths that optimize working pressures.

The new Dorado AIr system has a larger negative volume for improved small bump sensitivity and a refine positive chamber for a more progressive spring rate

• 37mm 6000 Series Aluminum stanchions
• 6000 Series Aluminum upper tubes
• Aluminum lower crown
• Aluminum steerer
• Aluminum upper crown
• Externally Adjustable
• High Speed Compression
• Low Speed Compression
• Rebound
• TPC+ Damper with HBO
• TSR Bleeders

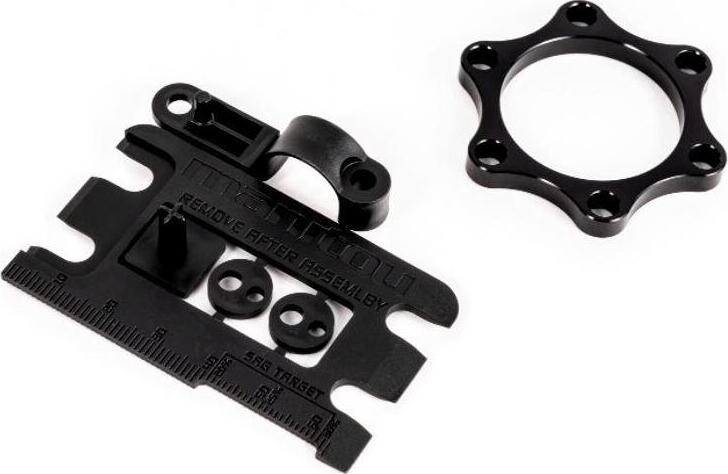

• Removable bolt on fender

SPECIFICATION:

• WHEEL SIZE: 27.5" / 29"
• EXTRAS: Threaded TSR
• MAX TIRE SIZE: 67mm
• AXLE: 110mm x 20mm BOOST Thru Axle
• BRAKE POST MOUNT: 203mm (223 Max)
• LEG MATERIAL: 6000 Series Aluminum
• LEG DIAMETER: 37mm
• OUTER LEG MATERIAL: 6000 Series Aluminum
• CROWN: Forged
• STEERER: 1-1/8" straight
• ADJUSTMENTS: Air, Air Volume, Rebound, HS and LS Compression
• REBOUND DAMPING: Cartidge Adjustable TPC
• COMPRESSION DAMPING: TPC+ w/ HBO
• SPRING: Dorado Air w/ IVA
• TRAVEL: 180, 190, 203mm internally adjustable
• RIDE HEIGHT: 582mm (27.5"), 602mm (29")
• OFFSET: 47mm Flat Crown/57mm Drop Crown
• WEIGHT: 3120g
• OPTIONS: Fender
